This article examines the depth distribution of deuterium in materials used in nuclear fusion applications, with particular emphasis on the Cu1Cr0.1Zr copper alloy and tungsten (W).
Fusion research relies on accurately determining the penetration and retention of hydrogen isotopes in these materials. This ability is fundamental because heat-exposed and plasma-facing components must withstand extreme operating conditions, including elevated temperatures, thermal gradients, intense particle irradiation, and long-term exposure to reactive species.
An in-depth understanding of deuterium behavior beneath the surface is essential for evaluating material performance in this context, as well as predicting degradation mechanisms and supporting the development of more resilient fusion-relevant components.
Secondary Ion Mass Spectrometry (SIMS) was employed to help address this challenge. This highly sensitive technique can resolve low-Z species throughout the material depth.

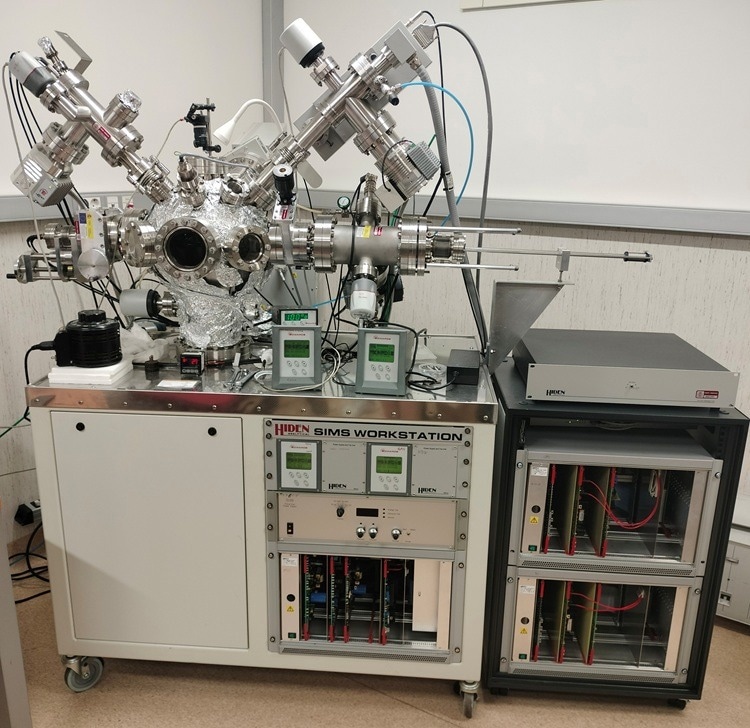

Figure 1. Hiden Analytical SIMS Workstation. Image Credit: Hiden Analytical
SIMS is also especially valuable in this field for its ability to provide depth-resolved information on isotopic species that are challenging to detect using traditional analytical methods.
The interpretation of SIMS depth profiles is not simple, however, because these profiles can be significantly impacted by factors such as surface morphology, crater evolution during profiling, matrix effects, and instrumental parameters.
The example work presented in this article has been designed to determine deuterium depth distributions, as well as identify the factors responsible for the differences observed between theoretical expectations and experimental profiles.
Deuterium ions with known fluence were implanted into W and CuCr0.1Zr at three irradiation energies to probe implantation at different depths.
Silicon samples implanted under comparable conditions were also used as reference standards.
The resulting SIMS depth profiles were compared against SRIM-based simulations, which were then used to estimate expected implantation distributions and projected ranges.
Overall trends were broadly consistent, but the experimental profiles showed clear deviations in peak shape, intensity, and symmetry, particularly at greater implantation depths.
These discrepancies were observed to be more pronounced at greater depths, implying that the analytical response depends on both the ion distribution and the interplay between the measurement conditions and the material matrix.
Complementary characterization techniques were used to clarify the origin of these effects, including electron backscatter diffraction, scanning electron microscopy, X-ray diffraction, and profilometry. These analyses allowed an assessment of potential contributions from crystallographic orientation, microstructural features, surface roughness, and depth-profile crater evolution.
The combined results suggest that the observed asymmetry and broadening in the SIMS signals are linked to a combination of factors, including sputtered material, surface roughening during depth profiling, redeposition, and instrumental limitations at greater depths, as opposed to the significant structural changes induced by deuterium implantation.
It is believed that this work is among the first to systematically investigate the variation of deuterium SIMS signals in relation to depth in fusion-relevant materials, while simultaneously considering multiple contributing factors within a unified framework.
These findings are expected to enhance the reliability of SIMS depth profiling in materials research and streamline the interpretation of hydrogen isotope retention data for forthcoming nuclear fusion technologies.
References and Further Reading
- Soria, G.D., González, M. and Roldán, M. (2026). On the knowledge of depth effect on secondary ion mass spectrometry profiling of deuterium-implanted fusion matrices. Materials Characterization, 234, p. 116216. DOI: 10.1016/j.matchar.2026.116216. https://www.sciencedirect.com/science/article/pii/S1044580326002536.
