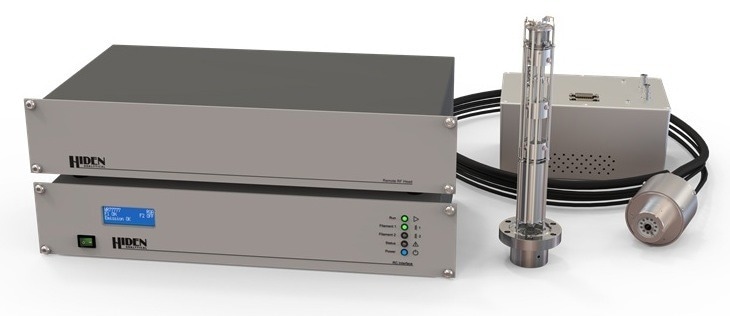

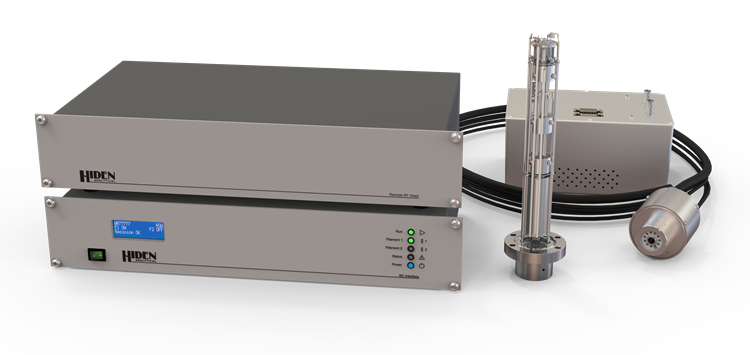

The HAL 101X RC is a system designed for tokamak and torus fusion research, enabling remote analyzer mounting at distances of up to 140 metres from sensitive electronics.
It includes the DLS-1 system operating in TIMS mode for measuring the concentration and purity of fusion fuel gases. This enables analysis of hydrogen isotopes, such as deuterium in helium, for example.
Overview
Hiden RGA series systems are designed for residual gas analysis, gas analysis, and process monitoring applications, including leak detection, trend analysis, and vacuum surveys.
The HAL 101X RC is a specialized analyzer within this range, offering additional features for real-time quantitative analysis of complex gas and vapour mixtures. It is particularly suited to fusion applications and operation in harsh environments.
Features
- Automatic mass scale alignment
- Data acquisition from multiple systems via Ethernet
- Fast access for histogram, trend analysis, and analog peak displays
- Integral mass spectral library with full editing facilities
- Operation of the quadrupole analyzer at distances of up to 140 m from the sensitive electronics
- Quantitative He/D2 analysis
- Simultaneous real-time display of graphical and tabular trend analysis data
- Template files for complex hydrocarbon and deuterated hydrocarbon analysis
Applications
- Fusion research
- Process gas contaminants
- Residual gas analysis
- Leak detection
- Pump performance
- Desorption
- Outgassing studies
- Bakeout cycles
