Tokamak Reactors and the Key to Nuclear Fusion

By Atif SuhailReviewed by Louis CastelJun 27 2025

As the global demand for clean, reliable, and abundant energy intensifies, nuclear fusion has re-emerged at the forefront of scientific and technological ambition. Among the various pathways to achieving fusion, tokamak reactors represent the most advanced and extensively researched design.¹

With the promise of mimicking the energy source of the stars on Earth, tokamaks have become pivotal to the future of sustainable energy. Global interest in fusion technology has soared, backed by major international collaborations and private sector investment. Projects like ITER, the Joint European Torus (JET), and emerging compact designs like SPARC have accelerated both scientific progress and public imagination.^1-2

This article provides a comprehensive guide to understanding tokamak reactors; how they work, why they matter, and where they may lead us.

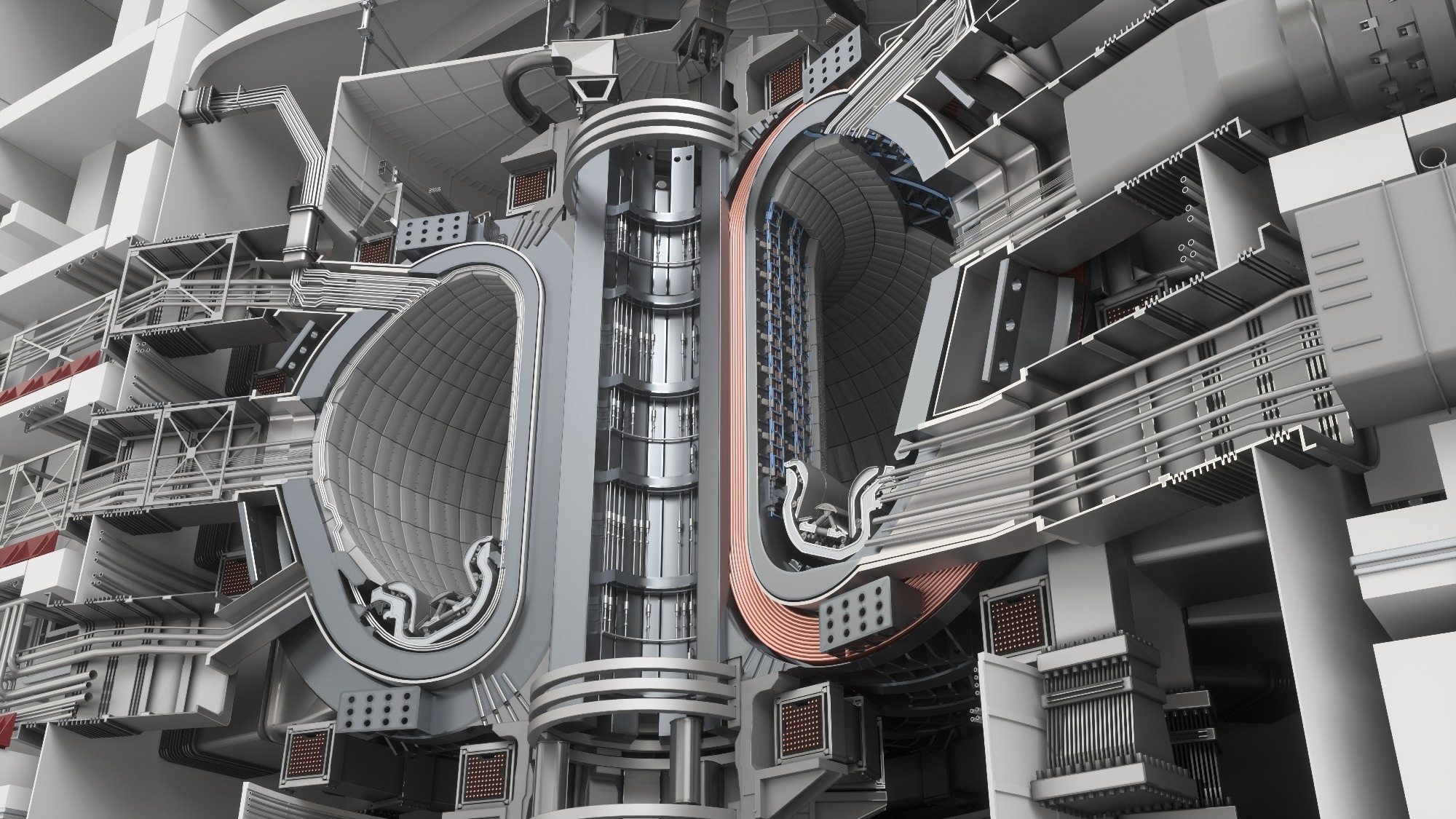

Image Credit: Borshch Filipp/Shutterstock.com

What is a Tokamak Reactor?

The term "tokamak" is derived from the Russian acronym ТОКАМАК, short for "тороидальная камера с магнитными катушками", meaning “toroidal chamber with magnetic coils.” Developed in the 1950s by Soviet physicists, the tokamak was the first device to demonstrate that magnetic fields could effectively confine extremely hot plasma long enough to make nuclear fusion viable. Early breakthroughs in Soviet experiments, such as the T-10 tokamak, were soon validated by Western labs, establishing the tokamak as the primary design for magnetic confinement fusion research across the globe.²

Structurally, a tokamak features a toroidal shaped chamber in which a plasma composed of hydrogen isotopes, primarily deuterium and tritium, is confined by powerful magnetic fields. To initiate fusion, the plasma must be heated to temperatures exceeding 100 million degrees Celsius. At these conditions, nuclei gain enough energy to overcome their electrostatic repulsion and fuse, releasing enormous energy in the form of high-speed neutrons.²

The tokamak maintains confinement using a sophisticated magnetic configuration: toroidal magnetic fields produced by external coils; poloidal magnetic fields induced by an electric current driven through the plasma; and a central solenoid, which serves as a transformer to sustain that current. This intricate setup generates a helical magnetic field that effectively traps the plasma away from the chamber walls, ensuring stability and optimal energy retention.^2-3

The tokamak’s main objective is to confine plasma efficiently, and long enough to enable frequent and sustained fusion events. This involves overcoming formidable technical challenges, including plasma turbulence, heat management, and the development of materials capable of withstanding extreme conditions. Despite these hurdles, the tokamak remains the most experimentally validated fusion architecture.²

Other fusion technologies offer alternative approaches but are at varying stages of maturity. Stellarators, for instance, also use magnetic confinement but rely solely on complex, externally wound magnetic coils, removing the need for a plasma current. This design promises steady-state operation and reduced instability but comes with increased construction and optimization challenges.²

Download your PDF copy now!

The Science of Magnetic Confinement

Nuclear fusion requires extreme conditions on Earth: atomic nuclei must overcome their electrostatic repulsion and collide with sufficient energy to fuse, releasing vast amounts of power. This is only achievable when matter is heated into a plasma state at temperatures exceeding 100 million °C. At such conditions, no physical material can contain the plasma, necessitating the use of magnetic confinement.⁴

In a tokamak, plasma must be confined long enough and at high enough pressure for fusion reactions to occur efficiently. The fusion gain factor (Q), defined as the ratio of fusion power output to the input power, must exceed 1 for a net energy gain. Decades of research have steadily improved our understanding of plasma behavior, notably through experimental tokamaks such as JET, TFTR, JT-60U, EAST, KSTAR, and Alcator C-Mod. These facilities demonstrated key benchmarks in confinement time, energy density, and control, culminating in ITER’s ambitious target of Q = 10.^{2, 4}

The tokamak's toroidal (doughnut-like) chamber is surrounded by magnetic coils that produce a toroidal magnetic field, guiding the plasma in a closed loop. A poloidal field twists around the torus, combining with the toroidal field to form a helical magnetic structure. This intricate configuration confines the plasma away from the walls and maintains its stability.

Despite these technological leaps, fusion remains a formidable engineering and physical challenge. One of the central hurdles is plasma stability. Plasma tends to develop instabilities and turbulence, which can lead to energy losses or disruptions. Complex magnetic field control, real-time diagnostics, and advanced simulations (e.g., DINA, ASTRA) are essential to manage these behaviors.⁵

Another key issue is the energy input/output balance. Achieving ignition requires not only sustaining the plasma but also minimizing energy losses through radiation, particle escape, or imperfect confinement. To this end, auxiliary heating methods like neutral beam injection (NBI), electron cyclotron resonance heating (ECRH), and ion cyclotron resonance heating (ICRH) are employed to reach and maintain the necessary thermal conditions.^{2, 5}

Recent Technological Advancements

Recent years have witnessed remarkable breakthroughs in tokamak technology, bringing us closer to practical fusion energy:

• Superconducting magnets: High-temperature superconductors (HTS) like REBCO tapes enable much stronger and more efficient magnetic fields, crucial for compact tokamak designs.
• Advanced materials: Tungsten, with its high melting point and low sputtering yield, is being tested for use in divertors, which handle the intense heat and particle load at the reactor’s exhaust.
• Machine learning and AI: These are increasingly used for real-time plasma control, predicting instabilities, and optimizing experimental conditions.

Several key experimental milestones underscore this progress:

• JET (UK) set a world record in 2021 and 2022 by producing over 59 megajoules of sustained fusion energy using a deuterium-tritium fuel mix.
• SPARC, a joint project between MIT and Commonwealth Fusion Systems, is developing a compact, high-field tokamak expected to achieve net energy gain (Q > 1) within this decade.
• ITER in France, the world's largest fusion experiment, represents a multinational effort involving 35 nations. Construction is well underway, with first plasma anticipated in the early 2030s.
• KSTAR, South Korea’s superconducting tokamak, demonstrated a record 20-second confinement of plasma at 100 million °C, showcasing advanced control capabilities.

Industry and Commercial Involvement

The fusion landscape is no longer confined to academic and public-sector laboratories. Over the past decade, private sector engagement has surged, with startups and tech companies investing in alternative designs, compact devices, and commercialization strategies.^{2, 6}

Notable players include:

• TAE Technologies, which uses a field-reversed configuration and boron-based fusion.
• General Fusion, pursuing a magnetized target fusion approach using liquid metal walls.
• Helion Energy and Zap Energy, each exploring unique confinement techniques and high repetition-rate fusion systems.

This burgeoning ecosystem is increasingly supported by public-private partnerships. Governments and agencies such as ARPA-E, the UKAEA, and EUROfusion are working with industry to fund demonstrators and build out supply chains.⁶

However, scaling remains a significant hurdle. Fusion reactors must not only achieve net energy gain but also run continuously, breed their own tritium fuel, manage radioactive materials, and integrate into existing energy infrastructure. Optimists foresee grid-connected fusion by the 2040s; skeptics argue that technical barriers may push that horizon further.⁶

Future Outlook for Tokamak Fusion

While undeniable progress has been made in fusion research, several significant scientific and engineering challenges remain. One of the foremost issues is material degradation, as reactor components must endure prolonged exposure to intense neutron bombardment without suffering erosion or loss of structural integrity.⁷

Another critical hurdle is tritium breeding; given tritium’s scarcity in nature, future reactors must incorporate breeding blankets containing lithium to produce it in situ. Moreover, efficient energy extraction and conversion of the immense heat generated by fusion into electricity poses complex thermodynamic and engineering challenges. Finally, the cost and complexity of fusion facilities remain substantial, necessitating innovations in modular design and system simplification to ensure economic viability for widespread deployment.⁷

Despite these obstacles, global cooperation in fusion science remains robust. The ITER project exemplifies this collaborative spirit, uniting researchers across continents in open-access science. Similar commitment is seen in Europe’s EUROfusion program, Japan’s JT-60SA, and expanding initiatives led by the U.S. Department of Energy, all collectively advancing the shared goal of practical fusion energy.^{2, 7}

References and Further Reading:

1. Solano, E. R., Fusion Research in a Deuterium-Tritium Tokamak. arXiv preprint arXiv:2504.11222 2025.
2. Krasilnikov, A.; Konovalov, S.; Bondarchuk, E.; Mazul’, I.; Rodin, I. Y.; Mineev, A.; Kuz’Min, E.; Kavin, A.; Karpov, D.; Leonov, V., Tokamak with Reactor Technologies (Trt): Concept, Missions, Key Distinctive Features and Expected Characteristics. Plasma Physics Reports 2021, 47, 1092-1106.
3. Mazzucato, E., A First Generation Fusion Reactor Using the D-3he Cycle. Fusion Science and Technology 2021, 77, 173-179.
4. Ellis, W. M.; Reali, L.; Davis, A.; Brooks, H. M.; Katramados, I.; Thornton, A.; Akers, R. J.; Dudarev, S. L., Mechanical Model for a Full Fusion Tokamak Enabled by Supercomputing. Nuclear Fusion 2025.
5. Hu, Y.; Xu, X.; Xu, Y.; Zheng, Y.; Li, G.; Qiu, Z.; Sun, Y., Anisotropic Distribution of Alpha Particles in a Tokamak Reactor. Nuclear Fusion 2025, 65, 066022.
6. Plant, D. General Fusion’s Approach to Commercialization; 2022.
7. Zakharov, L. E., What Can and Cannot Be Expected from Tokamak Fusion. Atomic Energy 2021, 130, 94-103.
