How Do Astronomers Use the Hertzsprung-Russell Diagram to Study the Evolutionary Stages of Stars?

The Hertzsprung-Russell diagram is a graphical representation of stars based on their physical attributes, offering valuable insights into the various phases of stellar evolution. This article will explore the significance of the Hertzsprung-Russell diagram and how astronomers use it to classify and investigate the evolutionary stages of stars.

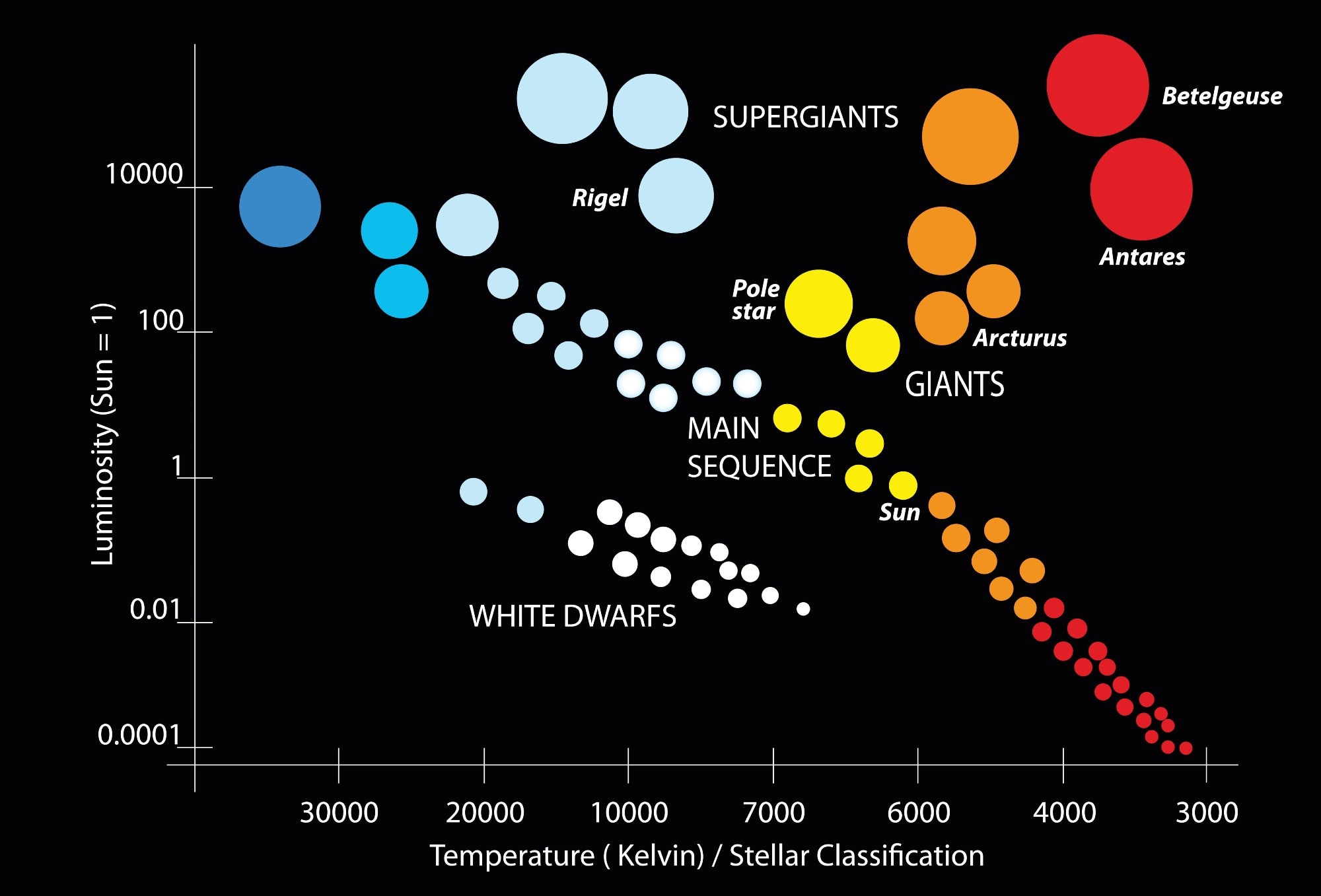

Hertzsprung-Russell Diagram

Image Credit: gstraub/Shutterstock.com

The Significance and Origins of the Hertzsprung-Russell Diagram

The Hertzsprung-Russell diagram has been a crucial tool in studying stellar evolution, as it allows astronomers to track the evolutionary path of stars and gain insights into their characteristics.

The Hertzsprung-Russell diagram plots the temperature or spectral type of stars against their luminosity or absolute magnitude, enabling astronomers to analyze distinct stellar evolution stages and transitions influenced by (stars') mass and energy production.

Ejnar Hertzsprung and Henry Norris Russell developed the Hertzsprung-Russell diagram independently in the early 1900s. Their collaboration and significant contributions in relating luminosity and temperature laid the foundation for developing this influential diagram, which continues to shape our understanding of stellar evolution.

Axes on the Hertzsprung-Russell Diagram

The Hertzsprung-Russell diagram plots the temperatures of stars in reverse order, with hotter stars to the left.

The effective temperature decreases from left to right, and the color index (B-V) shifts from negative (blue) to positive (red) horizontally. The vertical axis represents the luminosity of stars, either as a ratio to the Sun or in terms of absolute magnitude (M), where lower or more negative values indicate higher luminosity.

In specific cases, such as plotting stars in clusters, apparent magnitude (m) may be used, considering that the stars in the cluster are at the same distance, allowing differences in apparent magnitude to reflect actual variations in luminosity.

How Is Hertzsprung-Russell Diagram Used to Classify and Study the Evolutionary Stages of Stars?

All stars originate from nebulae, vast clouds of gas and dust. The Hertzsprung-Russell diagram categorizes stars based on their absolute magnitude and spectral type, allowing for the identification of various phases in a star's life.

The absolute magnitude measures a star's intrinsic brightness, allowing for comparing stars regardless of distance or interstellar conditions. By placing stars on the Hertzsprung-Russell diagram and standardizing their magnitudes, their true brightness can be assessed.

On the other hand, spectral type classifies stars based on the analysis of their emitted light and surface temperature. The dominant wavelength in the star's emitted light indicates its surface temperature, with hotter stars appearing bluer and colder stars appearing redder.

The Hertzsprung-Russell diagram displays stars with absolute magnitude on the vertical axis (descending direction) and spectral type or color on the horizontal axis.

Stars begin their celestial journey on the main sequence, a densely clustered diagonal line on the Hertzsprung-Russell diagram. This sequence extends from the top-left to the bottom-right and encompasses stars with varying luminosity and temperature (3000 – 30,000 Kelvin). This is the prime phase of their lives, characterized by stability, thermonuclear reactions in their cores, and bright shining.

Stars spend 90% of their life on the Main Sequence, with duration varying based on size, from massive stars depleting fuel quickly to smaller stars lasting billions of years.

As stars progress through different life phases, they deviate from the Main Sequence on the Hertzsprung-Russell diagram. Dying stars undergo transformations, transitioning into red giants or supergiants, which are identifiable by their reddish color and heightened brightness. These stars exhibit high luminosity while maintaining a relatively low temperature (4000 -15000 K).

Subsequently, they may evolve into blue giants as they shed outer layers and expose hotter inner regions. However, stars with high temperatures but low brightness transform into white dwarfs.

White dwarfs, in the lower left corner Hertzsprung-Russell diagram, are small, hot stars emitting relatively less energy but shining brightly due to their high temperatures (100,000 °C). As their mass increases, their radius decreases due to neutron degeneracy. However, there is a maximum mass, the Chandrasekhar Limit, beyond which they may collapse into a black hole.

Astronomers develop a series of models that depict the star at different stages of its evolution, each representing a later point in time. Using these models, scientists can predict a star's evolution by calculating its luminosity, size, and surface temperature at each step. These calculated points on the Hertzsprung-Russell diagram form an evolutionary trajectory that enables astronomers to track a star's lifetime changes.

The Hertzsprung-Russell diagram also provides insight into the timescales of stellar evolution, showing that massive stars reach the main sequence much faster, within thousands to a million years, while lower mass stars take tens of millions of years to reach the lower main sequence.

Limitations and Challenges Associated with Hertzsprung-Russell Diagram

The Hertzsprung-Russell diagram poses several limitations and challenges in studying stellar evolution.

One limitation is its applicability only to visible stars, excluding those too distant, faint, or obscured by dust. In addition, factors beyond mass and composition, such as magnetic field, rotation rate, and binary companions, can influence a star's luminosity, making it difficult to accurately determine its age and evolutionary stage using the Hertzsprung-Russell diagram.

The Hertzsprung-Russell diagram provides a static representation and cannot depict how a star's temperature and luminosity change over time.

Lastly, neutron stars, pulsars, black holes, planetary nebulas, and supernova remnants, which possess extreme and complex properties, cannot be plotted on the Hertzsprung-Russell diagram.

Concluding Remarks

The collaboration between Hertzsprung and Russell in creating the Hertzsprung-Russell Diagram transformed our understanding of stars and their evolution. The diagram has become an indispensable tool used worldwide by astronomers to classify, investigate, and gain deeper insights into the stellar universe.

Its enduring legacy continues to inspire new generations of astronomers and shape the development of theories and models on stellar evolution.

More from AZoQuantum: What Do We Know About Dark Matter Now?

References and Further Reading

Australia Telescope National Facility. (2023). The Hertzsprung-Russell Diagram. [Online]. Available at: https://www.atnf.csiro.au/outreach/education/senior/astrophysics/stellarevolution_hrintro.html

Chandra Digest. (2023). Pulsating Variable Stars and the Hertzsprung-Russell (H-R) Diagram. [Online]. Harvard-Smithsonian Center for Astrophysics. Available at: https://chandra.harvard.edu/edu/formal/variable_stars/bg_info.html

Fraknoi, A., Morrison, D., & Wolff, S. (2022). The H–R Diagram and the Study of Stellar Evolution. Astronomy 2e. Open-Stax. Available at: https://openstax.org/books/astronomy/pages/21-2-the-h-r-diagram-and-the-study-of-stellar-evolution

Langer, N., & Kudritzki, R. P. (2014). The spectroscopic Hertzsprung-Russell diagram. Astronomy & Astrophysics, 564, A52. https://doi.org/10.1051/0004-6361/201423374

National Schools' Observatory. (2023). Life Cycle of a Star. [Online]. Liverpool John Moores University. Available at: https://www.schoolsobservatory.org/learn/astro/stars/cycle
