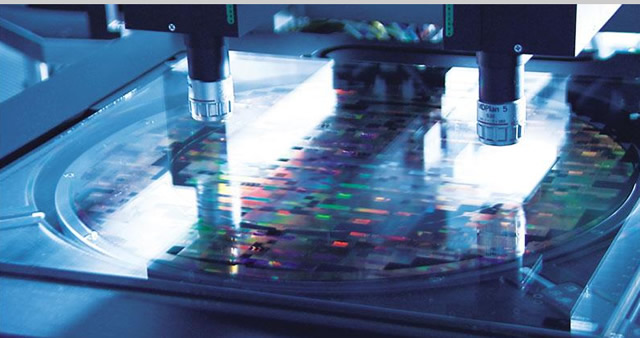

IQ Aligner® - Automated Mask Alignment System

The IQ Aligner Automated Mask Alignment System is based on a field-proven, robust design with up to 300 mm wafer size capability, full-field exposure, single and double-side alignment, large gap and dark field mask alignment. The high automation level makes the IQ Aligner Automated Mask Alignment System suitable for volume production applications while tremendously lowering equipment operation and maintenance costs.

Features

  • Leading edge technology and high automation level for up to 300 mm wafer sizes
  • Full-field exposure, large gap and dark field mask alignment are universal features for wafer bumping, chip scale packaging and similar demands
  • NanoAlign® featuring high resolution top and bottom side splitfield microscopes
  • Handling of multiple wafer sizes with quick change-over time
  • Windows® based user interface
  • Darkfield mask alignment
  • Manual or fully automated high throughput operation
  • Minimized footprint

Options

  • Temperature controlled wafer chuck for Run-Out compensation
  • Automated mask handling capability
  • Thin or warped wafer handling
  • Nanoimprint lithography and micro contact printing
  • Bond alignment capability (easy conversion between litho and bond alignment)
  • Simulation software for mask aligner lithography process
