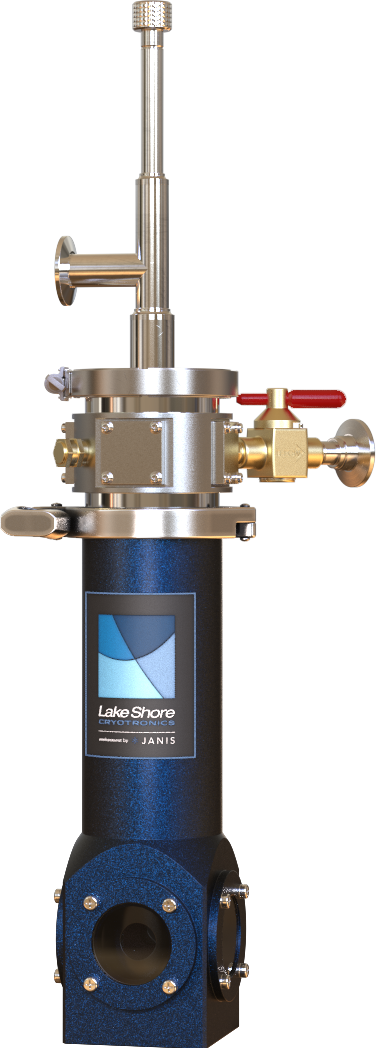

Optical Cryostat from Lake Shore

Optical continuous flow cryostat suitable for a wide range of applications: the window material and geometry can be specified to allow spectroscopy with excitation energies from gamma rays through to the far infrared.

Designed for experiments requiring optical access to the sample, the Lake Shore ST-100 includes the following components:

ST-100 Optical Cryostat Mechanical Drawing

  • Optical vacuum shroud
  • Optical radiation shield
  • Four (4) 1.625" clear view quartz windows
  • Optical sample holder
  • One (1) 10-pin electrical feedthrough
  • Three (3) blank feedthrough ports
  • Temperature sensor
  • 6' superinsulated cryogen transfer line
  • System test

Typical Applications:

  • Matrix Isolation
  • Raman Spectroscopy
  • UV, VlS, IR, FTIR
  • Optoelectric Effect
  • Photoluminescence
  • Microphotoluminescence
  • High Tc
  • Microscopy
